Click to zoom

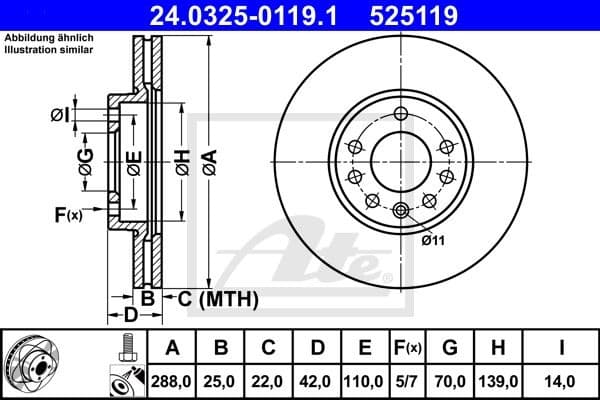

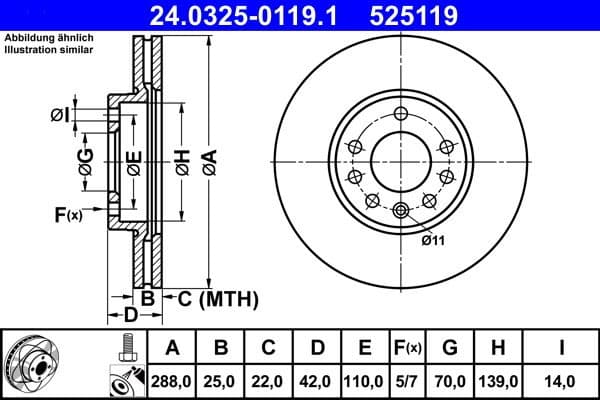

ATEBrand ATE SKU / MPN 24.0325-0119.1 Bolt hole circle (mm) 110 Bore diameter (mm) 14 Brake disc thickness (mm) 25 Brake disc type Vented Centering diameter (mm) 70 Height (mm) 42 Inner diameter (mm) 139 Machining Alloyed/High-carbon Minimum thickness (mm) 22 No of holes 2 7 Number of holes 5 Outer diameter (mm) 288 Supplementary article supplementary info 2 with bolts/screws Surface Coated Test mark E1 90R-02C0858/1210 Oznaczenie kontrolne E1 90R-02C0858/1210 Wysokość (mm) 42,0 Średnica otworu (mm) 14,0 Typ tarczy hamulcowej wentylowany Grubość tarczy hamulcowej (mm) 25,0 Minimalna grubość (mm) 22,0 Przetwarzanie stopowy / wysoko nawęglany Średnica wewnętrzna (mm) 139,0 Średnica zewnętrzna (mm) 288,0 Liczba otworów 5 Średnica otworu centrującego (mm) 70,0 Ø rozmieszczenia otworów (mm) 110,0 Powierzchnia pokryty Artykuł uzupełniający / informacja uzupełniająca 2 ze śrubami Liczba otworów 2 7

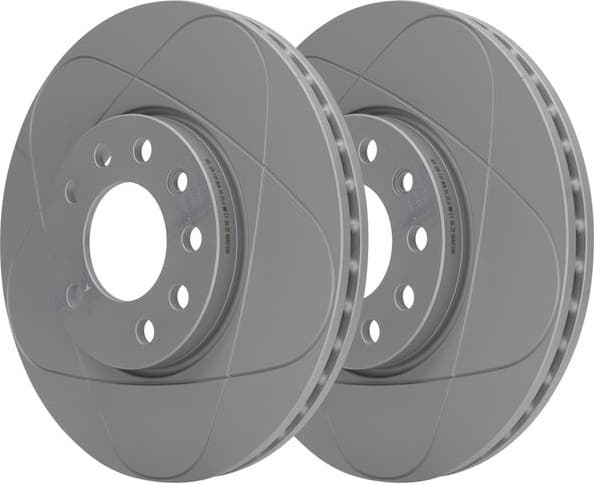

Brake Disc PowerDisc 24.0325-0119.1
SKU: 24.0325-0119.1In Stock
Available — ships within 24 hours
Competitive B2B pricing available
Contact us for volume pricing and custom quotes. EU VAT reclaim available for registered businesses.
Volume discounts available. Typically respond within 24 hours.
Product Details
OEM Quality
Ships Worldwide
Easy Returns
OE / Cross-Reference Numbers
This part replaces or is compatible with these OE (Original Equipment) numbers. Search any of these numbers to find this product.
